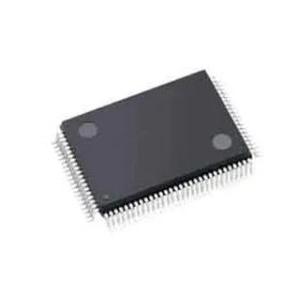

PIC32MX795F512L-80IPF 16 Channel 32-bit Microcontrollers MCU 512KB Flash 128KBRAM USB 2xCAN 8 DMA
Operating Conditions;
• 2.3V to 3.6V, -40ºC to +105ºC, DC to 80 MHz
Core: 80 MHz/105 DMIPS MIPS32® M4K®
• MIPS16e® mode for up to 40% smaller code size
• Code-efficient (C and Assembly) architecture
• Single-cycle (MAC) 32x16 and two-cycle 32x32 multiply
Clock Management
• 0.9% internal oscillator (on some variants)
• Programmable PLLs and oscillator clock sources
• Fail-Safe Clock Monitor (FSCM)
• Independent Watchdog Timer
• Fast wake-up and start-up
Power Management
• Low-power management modes (Sleep and Idle)
• Integrated Power-on Reset, Brown-out Reset
• 0.5 mA/MHz dynamic current (typical)
• 41 µA IPD current (typical)
Graphics Features
• External graphics interface with up to 34 Parallel Master Port (PMP) pins:
- Interface to external graphics controller
- Capable of driving LCD directly with DMA and internal or external memory
Analog Features
• ADC Module:
- 10-bit 1 Msps rate with one Sample and Hold (S&H)
- 16 analog inputs
- Can operate during Sleep mode
• Flexible and independent ADC trigger sources
• Comparators:
- Two dual-input Comparator modules
- Programmable references with 32 voltage points
| Product Category: | 32-bit Microcontrollers - MCU |
| PIC32MX7xx | |
| SMD/SMT | |
| TQFP-100 | |
| MIPS32 M4K | |
| 512 kB | |
| 128 kB | |
| 32 bit | |
| 10 bit | |
| 80 MHz | |
| 85 I/O | |
| 2.3 V | |
| 3.6 V | |
| - 40 C | |
| + 85 C | |
| Tray | |
| Height: | 1 mm |
| Interface Type: | CAN/Ethernet/I2C/SPI/UART/USB |
| Length: | 14 mm |
| Moisture Sensitive: | Yes |
| Number of ADC Channels: | 16 Channel |
| Number of Timers/Counters: | 5 Timer |
| Processor Series: | PIC32 |
| Product: | MCU |
| Product Type: | 32-bit Microcontrollers - MCU |
| Program Memory Type: | Flash |
| 90 | |
| Subcategory: | Microcontrollers - MCU |
| Tradename: | MIPS32 |
| Watchdog Timers: | Watchdog Timer |
| Width: | 14 mm |
| Unit Weight: | 0.028572 oz |
